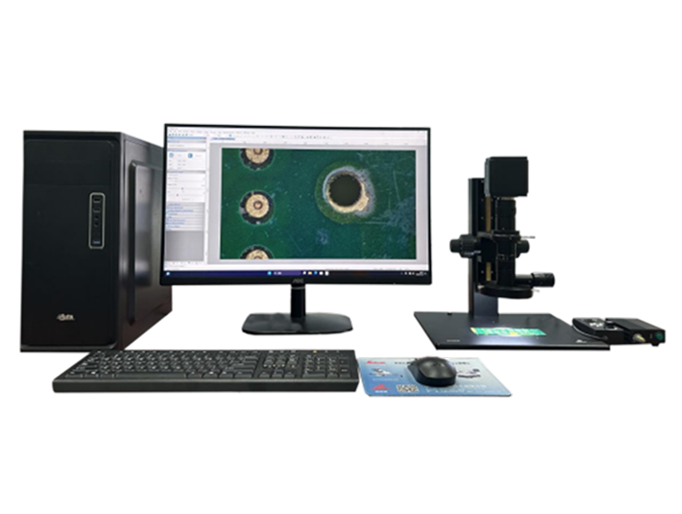

FULL HD VIDEO MICROSCOPE Model: BVM03 from Beijia
Equipped with a high-level parallel optical system that provides high-resolution and high-contrast images. The low-distortion zoom head ensures accurate measurement. Zoom range of 0.6–5.0x with a C-mount adapter and various auxiliary objectives. Long working distance of 86mm, and can be connected to a PC/Laptop via USB or HDMI for detailed and convenient sample inspection and measurement.
- High-level parallel optical system, high-resolution and high-contrast images. The low-distortion zoom head ensures accurate measurement.
- Zoom range 0.6–5.0x, large zoom ratio of 8.3:1, quickly switch from overview to detail.
- The zoom head is made of high-strength aluminum alloy, corrosion-resistant, with surface treated by anodic oxidation process, extending service life.
- Wide magnification range with optional C-mount adapters: 0.3x, 0.45x, 0.5x, 0.67x, 1x, 1.5x, 2x, 3x.
- Optional auxiliary objectives: 0.3x, 0.4x, 0.5x, 0.6x, 1.5x, 2x.
- Long working distance: 86mm (with 1x objective).
- Dual-stage coarse/fine focus driver, minimum focusing step 2μm.
- Large travel stage for inspecting large samples.
- Microscope can connect to PC/Laptop via USB port or display on LCD via HDMI port.
- In USB mode, use microscope software on PC.
- In HDMI mode, integrated microscope software system allows you to inspect, observe, and measure your samples.
- LED or fiber optic illumination options available to meet different requirements.
